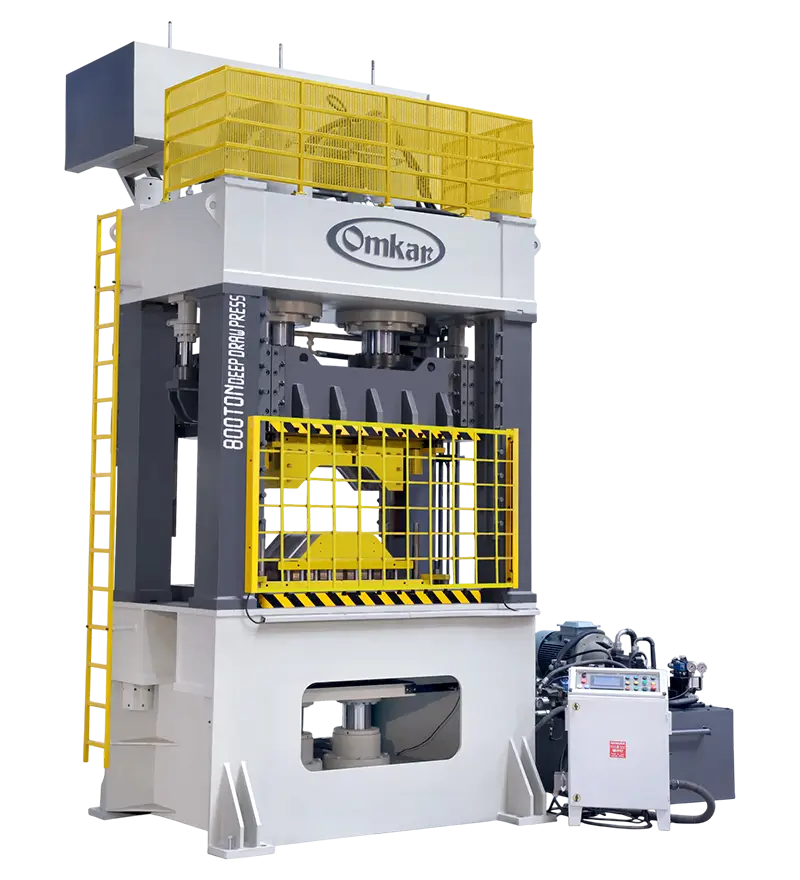

Straight Side Deep Draw Press Machine

Note: This Specification is Customize, we are making machine as per customers requirement.

Capacity	Bed Size (mm)	Bed to Ram (Delight Gap) (mm)	Stroke (Travel of Ram) (mm)	Cushion Cylinder Stroke	Hyd. Cushion Capacity	Shut Height	Motor H.P.	Oil Tank
200 Ton	800 x 1000	800	600	260	120 Ton	200	20+2	800
315 Ton	900 x 1200	1000	800	300	150 Ton	200	30+2	1000
400 Ton	1000 x 1500	1100	900	350	200 Ton	200	60+3	1500
500 Ton	1100 x 1700	1100	900	350	200 Ton	200	40+40+5	2000
630 Ton	1150 x 1750	1100	900	400	250 Ton	200	50+50+5	2200
800 Ton	1400 x 2000	1100	900	400	300 Ton	200	50+50+5	2500
1000 Ton	1600 x 2000	1500	1350	400	400 Ton	150	50+50+5	3000
1250 Ton	1600 x 2500	1500	1350	400	500 Ton	150	60+60+5	3500
1600 Ton	1750 x 2800	1500	1350	400	640 Ton	150	60+60+5	4000
2000 Ton	1750 x 2800	1500	1350	400	800 Ton	150	60+60+5	4000
