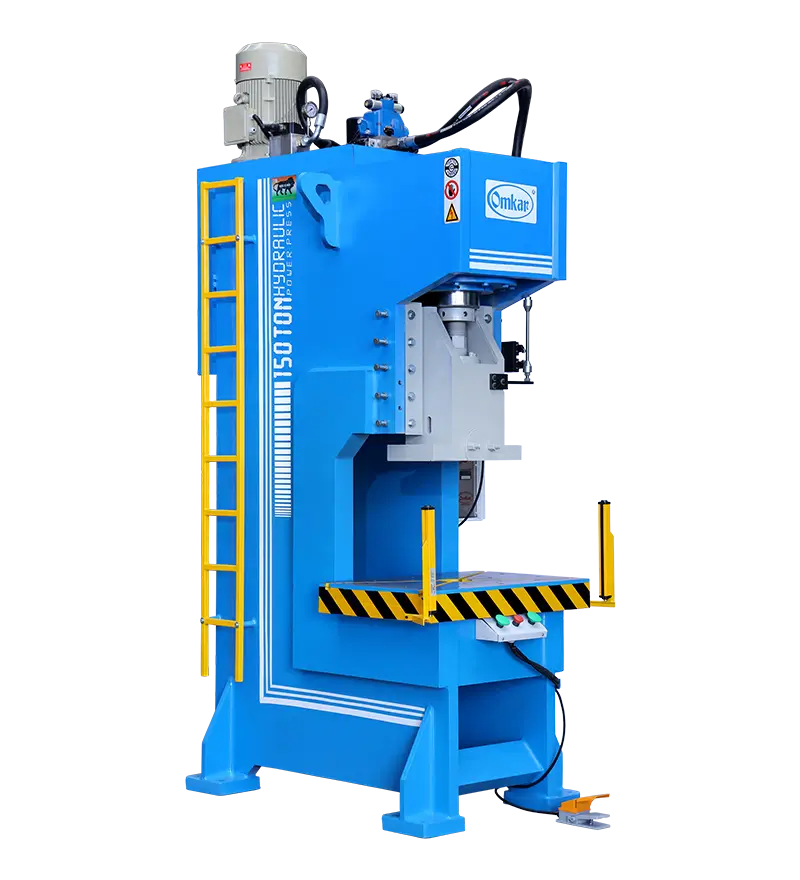

RAM Type C Type Hydraulic Press Machine

Capacity	Bed Size (mm)	Throat (Center to Depth) (mm)	Bed to Ram (Delight Gap) (mm)	Stroke (Travel of Ram) (mm)	Motor H.P.
3 Ton	254 × 175	88	150	50	1
5 Ton	305 × 200	100	153	50	1.5
10 Ton	410 × 255	127	225	80	2
20 Ton	508 × 305	152	255	100	3
30 Ton	558 × 355	175	300	100	3
50 Ton	660 × 406	203	300	100	5
60 Ton	660 × 406	203	350	125	5
80 Ton	762 × 508	254	380	125	7.5
100 Ton	813 × 584	292	400	150	10
150 Ton	850 × 610	305	410	200	15
200 Ton	915 × 610	305	410	200	20

Note: This Specification is Customize, we are making machine as per customers requirement.
